Selina Questions and Solutions from Exercise 1(B)

Here are questions from Selina Concise Physics Class 10 Force Exercise 1B with concise solutions to give you a head start:

(A) Multiple Choice Type : Exercise 1(B)

(Choose the correct answer from the options given below).

Question 1
The centre of gravity of a body is the point about which the algebraic sum of moments of weights of all the particles constituting the body is:
(a) 1
(b) > 1
(c) < 1
(d) 0
Answer:
(d)  0
Explanation:
At the centre of gravity, the net moment of all the individual weights about it is zero.

Question 2
The centre of gravity of a hollow cone of height \(h\) is at distance \(x\) from its vertex where the value of \(x\) is:

(a) \(\frac{h}{3}\)

(b) \(\frac{h}{4}\)

(c) \(\frac{2h}{3}\)

(d) \(\frac{3h}{4}\)

Answer:

(c) \(\frac{2h}{3}\)

Explanation:
The centre of gravity of a hollow cone is at a height  \(\frac{h}{3}\) from the base.
Hence, from the vertex the height is :
\(h\ −\ \frac{h}{3}\ =\ \frac{3h\ −\ h}{3}\ =\ \frac{2h}{3}\)

Question 3
Where should the centre of gravity of a body be located for stable equilibrium?
(a) above the base
(b) near the geometric centre
(c) can be anywhere
(d) both (a) and (b)
Answer:
(d)  both (1) and (2)
Explanation:
For stable equilibrium, the centre of gravity should be low and centrally located.

Question 4
Two objects have the same mass but different shapes. Which object would have a higher centre of gravity?
(a) the one with a larger base
(b) the one with a smaller base
(c) both would have the same centre of gravity
(d) it depends on the material of the object.
Answer:
(b) the one with a smaller base
Explanation:
For objects of the same mass and height, a smaller base generally means the mass is distributed more vertically, making the centre of gravity higher. Objects with a wider base tend to have a lower centre of gravity and are more stable.

Question 5
A hollow cone is kept upright on a table. When sand is slowly poured in it, the centre of gravity of the cone-sand system will:
(a) always rise continuously
(b) always fall continuously
(c) first falls and then rises
(d) remain fixed at the same point
Answer:
(c) first falls and then rises
Explanation:
Initially, the sand accumulates near the bottom of the cone, causing the centre of gravity of the cone-sand system to move downward. As more sand is added, the upper layers of sand contribute more mass at higher positions, causing the centre of gravity to rise again.

Question 6
A child starts eating an ice cream from a fully-filled cone. What happens to its centre of gravity?
(a) rises continuously
(b) falls continuously
(c) remains constant
(d) none of the above
Answer:
(b) Falls continuously
Explanation:
When the child eats the ice cream from the top, the mass at higher positions is removed first. As a result, the remaining mass is concentrated lower in the cone, causing the centre of gravity of the cone–ice cream system to fall continuously.

Question 7
A hollow spherical tank is half-filled with oil. If water (denser than oil) is added, the overall centre of gravity will:
(a) move upward
(b) move downward
(c) remain at the same point
(d) first rises and then falls
Answer:
(b) move downward
Explanation:
Water is denser than oil and settles below the oil layer. Since more mass is added near the bottom of the tank, the overall centre of gravity shifts downward.

Question 8
A hollow rectangular box is standing upright. A heavy brick is placed on top of the box. The centre of gravity of the system will:
(a) move downward
(b) move upward
(c) remain at the same Point
(d) first move up and then down
Answer:
(b) move upward
Explanation:
The brick adds a significant amount of mass at a higher position. Therefore, the combined centre of gravity of the box and brick shifts upward toward the brick.

(B) Very Short Questions : Exercise 1(B)

Question 1
Can the centre of gravity of a body be situated outside its material of the body? Give an example.
Answer:
Yes, the centre of gravity of a body can be situated outside the material of the body.
For example, the centre of gravity of a ring or a hollow sphere lies at its centre where there is no material.

Question 2
State whether the following statements are true or false.
(i) ‘The position of centre of gravity of a body remains unchanged even when the body is deformed’.
(ii) ‘The centre of gravity of a freely suspended body always lies vertically below the point of suspension’.
Answer:
(i) False
(ii) True

(C) Short Questions : Exercise 1(B)

Question 1
Define the term ‘centre of gravity of a body’.
Answer:
The centre of gravity of a body is defined as the point about which the algebraic sum of moments of weights of particles constituting the body is zero and the entire weight of the body is to act at this point.

Question 2
State a factor on which the position of centre of gravity of a body depend? Explain your answer with an example.
Answer:
The position of the centre of gravity of any body will depend on the shape or distribution of mass of the body. It changes if the shape of the body is deformed.
For example, the centre of gravity of a uniform wire is at the middle of its length. But if the same wire is bent into the form of a circle, its centre of gravity will then be at the centre of the circle.

Question 3

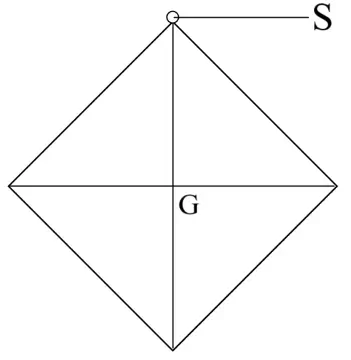

A square card board is suspended by passing a pin through a narrow hole at its one corner. Draw a diagram to show its rest position. In the diagram mark the point of suspension by the letter S and centre of gravity by the letter G.
Answer:
The diagram is shown below:

Question 4
Humans bend forward when they carry a heavy load on their back. Give reason.
Answer:
Humans bend forward when carrying a heavy load on their back to maintain balance and stability. The heavy load shifts the body’s center of gravity backward and upward. By leaning forward, the person moves their center of gravity closer to its natural position over the feet, reducing the risk of falling backward and making it easier to stabilize and walk. This posture also engages the stronger core and leg muscles to support the added weight.

Question 5
You are assigned to look after a loading of a cargo ship with containers marked A and B. The A type containers are 50% more heavier than B type containers. What precaution would you take and why so that the ship sails smoothly even in rougher seas?

Answer:

1. Place heavier Type A containers at the bottom of the stack and lighter Type B containers on top to lower the ship’s center of gravity.
2. Avoid concentrating heavy containers in one area.

Question 6

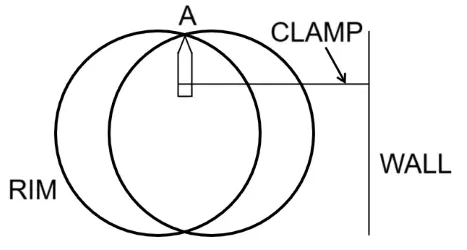

A uniform flat circular rim is balanced on a sharp vertical nail by supporting it at a point A, as shown in figure. Mark the position of centre of gravity of the rim in the diagram by the letter G.

Answer:

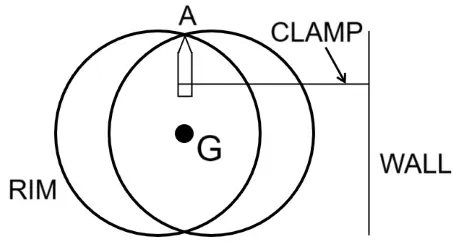

The position of centre of gravity of the rim is marked by the letter G in the below diagram:

Question 7
Figure shows three pieces of card board of uniform thickness cut into three different shapes. On each diagram draw two lines to indicate the position of centre of gravity G.

Answer:

The position of centre of gravity G for the three pieces of card board are marked in the below diagrams:

(D) Long Questions : Exercise 1(B)

Question 1
Explain how you will determine experimentally the position of centre of gravity for a triangular lamina (or a triangular piece of card board).

Answer:

To experimentally determine the center of gravity of a triangular lamina (e.g., cardboard):

1. Suspend the lamina from one vertex using a pin, allowing it to hang freely.
2. Hang a plumb line (string with a weight) from the pin and mark its vertical path on the lamina (this traces a median).
3. Repeat the process from a second vertex, marking another median.
4. The intersection of the two marked lines is the center of gravity (centroid).
5. Optionally, verify by suspending from the third vertex or balancing the lamina at the intersection point
